PRODUCTS

TILES APPLICATIONS

SURPLOT SPJ8a


SPJ8a


SP8a

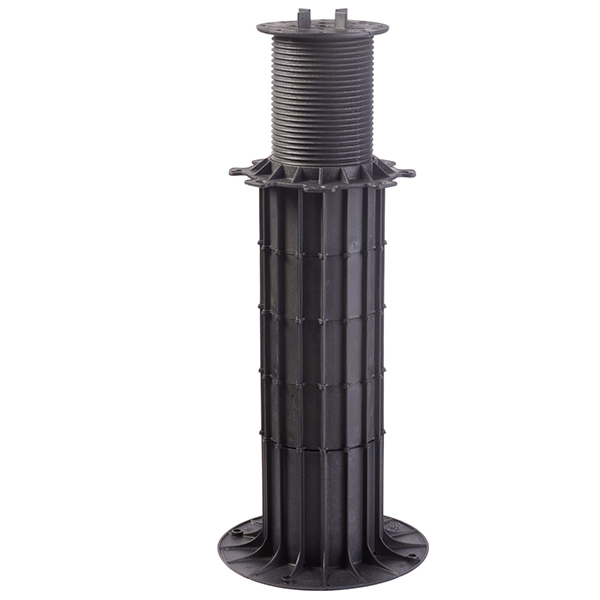

Surplot Adjustable Pedestal SP8a

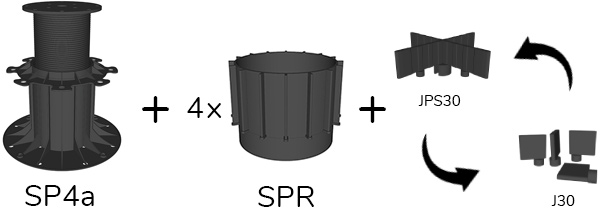

380 mm - 500 mm included is Surplot SP4a (140-260 mm) pedestal and 4 Surplot SPR (60mm) which can be mounted on top of each other to achieve desired (maximum) height.
Standard joints are 3 mm thick. Suitable for use of disassembled joints in different sizes between 2 and 10 mm when desired.
Compatible with different joist holder apparatus for size decks.

Product Code SPJ8a
Setting Range 380-500 mm
Material Polypropilene
Base Diameter 200 mm
Peak Diameter 120 mm
Central Load Strength 1000 kg


Download Surplot Brochure
