SURPLOT SPW5a




Surplot Adjustable Pedestal SP5a

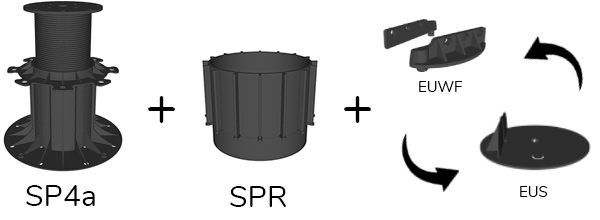

200 mm-320 mm included is Surplot SP4a (140-260 mm) pedestal and 1 Surplot SPR (60mm) which can be mounted on top of each other to achieve desired (maximum) height.
Standard joints are 3 mm thick. Suitable for use of disassembled joints in different sizes between 2 and 10 mm when desired.
Compatible with different joist holder apparatus for size decks.

Product Code SPW5a
Setting Range 200-320 mm
Material Polypropilene
Base Diameter 200 mm
Peak Diameter 120 mm
Central Load Strength 1000 kg


Download Surplot Brochure
